LOGIX 12th Gen Intel i5 6 Core 4.40GHz 1 Litre Mini Business PC for Alarm & Door Entry Systems with 8GB RAM, 250GB NVMe SSD, Windows 11 Pro, Keyboard & Mouse

LOGIX 12th Gen Intel i5 6 Core 4.40GHz 1 Litre Mini Business PC for Alarm & Door Entry Systems with 8GB RAM, 250GB NVMe SSD, Windows 11 Pro, Keyboard & Mouse

Regular price £725.20 GBP
Regular price Sale price £725.20 GBP
Sale Sold out
Shipping calculated at checkout.
Main Features
Designed for alarm and door-entry systems from brands like Paxton and Axis
Secure, wired-only connection
Tiny, 1-litre unit fits on the back of a monitor
Powerful 12th Gen Intel Core i5 4.40GHz processor
Superfast 250GB Kingston Technology NVMe SSD with 8GB DDR4 RAM
HDMI, DisplayPort, USB-A, Gigabit Ethernet

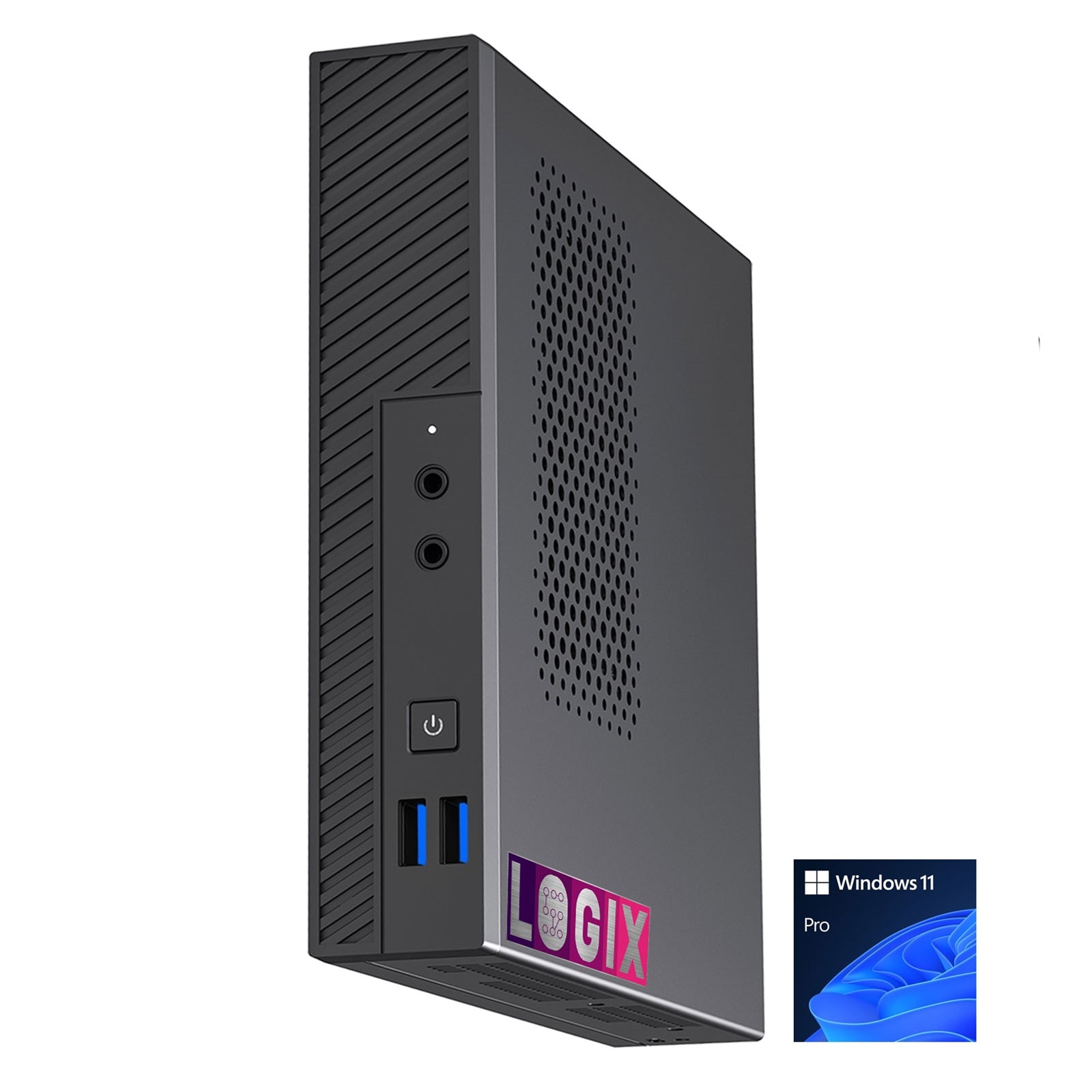

Do not be fooled by its tiny size, the LOGIX LT-528P is a powerful 6-core business PC designed to discreetly fit to the back of a monitor. Whether you're working on large reports, surfing the Internet, presenting or participating in online meetings, or a bit of everything, its powerful 12th Gen Intel Core i5 processor, cutting edge graphics, fast memory and ample storage will make it all a breeze.

The LOGIX LT-528P has a wired-only Internet connection, making it extremely secure and ideal for running alarm and door-entry systems from brands like Paxton and Axis. It's a true workhorse, but it's been hand-built in the UK with all the care and attention of a custom-made PC, just without the flashing lights or even flashier pricetag.

It's built to be used all-day, reliably and, thanks to its tiny size, attaches discreetly to a monitor or monitor-arm, freeing up physical and mental space and allowing you to concentrate on the task(s) at hand.

Microsoft Windows 11 Pro has been installed and updated, ready-to-go. It's bloatware free, no additional software is installed, so there's no spending hours removing programs and files you don't need that slow your PC down. We’ve even included a Logitech MK120 keyboard and optical mouse so you can get going straight away.

Built to the highest of standards and featuring world renown brands, this PC is futureproofed and designed to last, which is why it comes with a full 3-year warranty. The World’s most popular operating system, Windows 11 Pro, is preinstalled – you just need to turn it on and follow the instructions in the Quick Start Guide – Reliability and security built in.


Operating System: Windows 11 Pro
Processor: Intel i5 12th Gen 6 Core
Memory (RAM): Kingston Technologies 8GB DDR4
Storage:Kingston Technologies 250GB NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 with 4K & DirectX support
Sound: 7.1 Surround Sound
Case: Small Form 1 Liter VESA Mountable
1 x DisplayPort
1 x HDMI
2 x USB-A 3.0
2 x USB-A 2.0
2 x USB-A 3.2
1 x Ethernet
1 x Mic In/ Headphone Out
Wired: 1Gb Realtek Ethernet
Peripherals: Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty: 3 years - parts and collection included

Product Description
Small Form Factor - Intel i5 12400 6 Core 12 Threads 2.50GHz (4.40GHz Boost), 8GB RAM, 250GB NVMe M.2, Windows 11 Pro - 1L VESA Mountable Small Foot Print for Home or Office Use - Pre-Built PC

Intel Core i5 12400 2.5GHz 6 Core LGA 1700 Alder Lake Processor, 12 Threads, 4.4GHz Boost, Intel UHD 730 Graphics

Processor Cores

Processor Threads

Core Clock Speed

Core Boost Speed

Kingston ValueRAM 8GB No Heatsink (1 x 8GB) DDR4 2666MHz SODIMM System Memory

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV2 (SNV2S/250G) 250GB NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 3000 MB/s, Write 1300 MB/s

NVMe M.2

Max Read/Write Speeds
Sequential Read : 3000MB/s
Sequential Write : 1300 MB/s

Hard Drive

Optical Drive

Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Execution Units
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O

Operating System
Microsoft Windows 11 Professional 64bit English OEI DVD Operating Software

Card Reader

1Gb Realtek Ethernet

Power Supply
External 120w (provided)

Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS

1 x M.2 (2260/2280) - SATA & PCIe

Rear I/O
2 x USB 3.2 Gen2
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 1Gb Ethernet
2 x Audio jacks
1 x DC Power (Support 19V)

Internal I/O
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 2-pin +19V
1 x SATA power
1 x M.2 (Key M)
2 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x USB 2.0
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC 1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x Clear CMOS
1 x Chassis Intrude
1 x COM Port
1 x COM debug
1 x Front Panel Audio
1 x LVDS 1 x M.2 slot (Key E)
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

LT100 1 Litre USB3.0 Ultra-Thin Mini-ITX Computer Case

IO Ports
2 x USB 3.0
1 x HD Audio
1 x Microphone

182mm x 36mm x 186mm (W x H x D)

Package Weight
2.55 kg

3 Years collect & Return UK Main Land
