Ubiquiti UX UniFi Express Combined Access Point, Router, Cloud Controller - USB C Powered (EU Plug, No UK PSU Included)

Ubiquiti UniFi UX Express Gateway Access Point Router
Requires UK USB-C Power Adaptor (suggested part: CLPRE-QC72USBC)

Key Features
Powerfully compact UniFi Cloud Gateway
WiFi 6 access point
Built-in WiF6 (2x2 MIMO)
140 m² (1,500 ft²) single-unit coverage
60+ connected WiFi devices
1 x GbE RJ45 WAN port
1 x GbE RJ45 LAN port to extend network
0.96" LCM status display

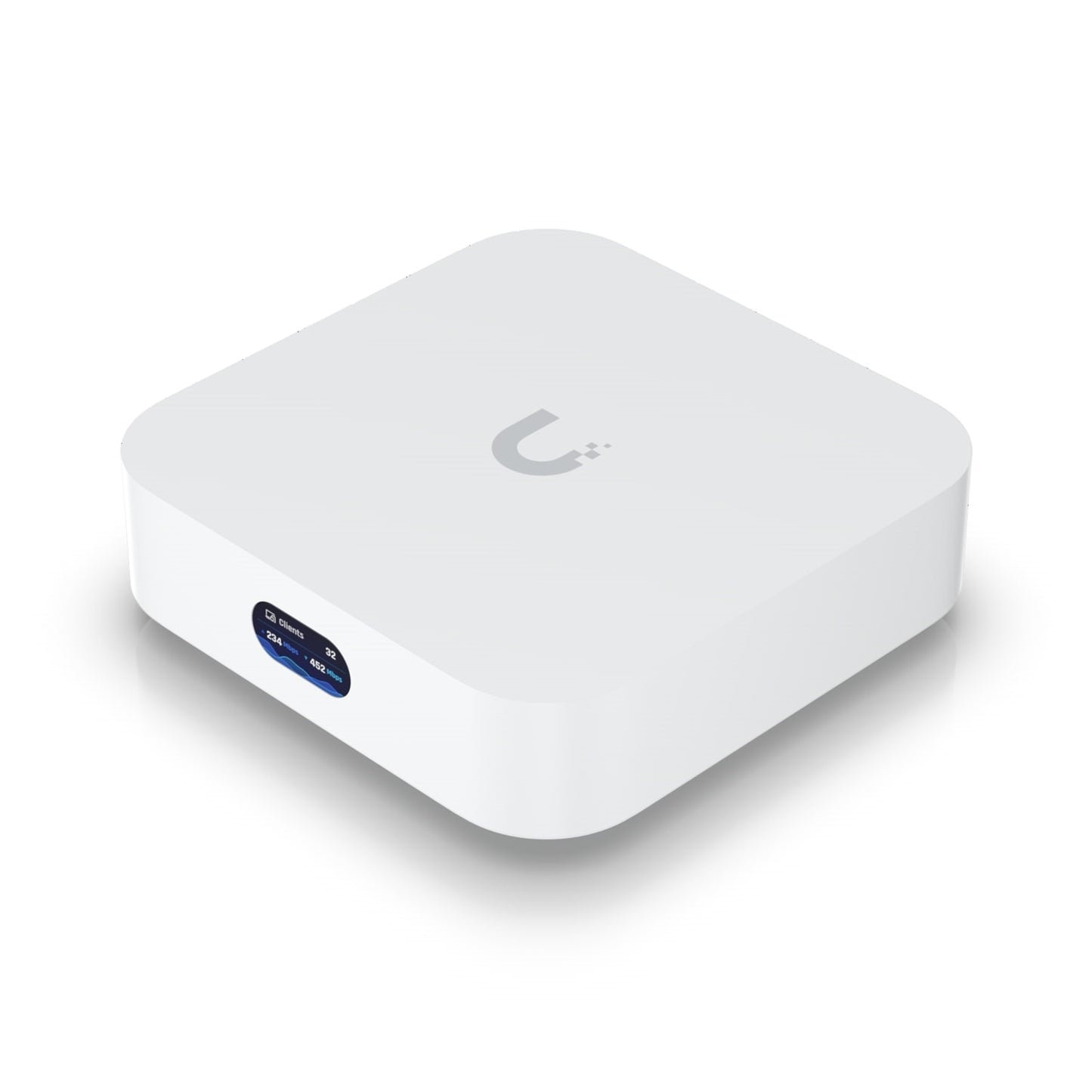

The Ubiquiti UniFi Express (UX) is a robust and compact UniFi Cloud Gateway combined with a WiFi 6 access point, designed to manage entire networks or simply serve as an access point. This device offers built-in WiFi 6 with 2x2 MIMO technology, ensuring efficient and high-speed wireless connectivity. It covers an area of up to 140 m² (1,500 ft²) and can connect over 60 WiFi devices simultaneously.

The UniFi UX features one Gigabit Ethernet (GbE) RJ45 WAN port and one GbE RJ45 LAN port for network extension. Additionally, it includes a 0.96" LCM status display for easy monitoring. Its compact form factor, measuring 98 x 98 x 30 mm and weighing 302 g, is housed in a polycarbonate enclosure. The UX also supports a USB type C power method (5V DC/3A) and has a maximum power consumption of 10W.

UniFi UX's supports WiFi standards 802.11a/b/g, WiFi 4, WiFi 5, and WiFi 6, alongside advanced security protocols like WPA-PSK and WPA-Enterprise (WPA/WPA2/WPA3). It provides advanced QoS with per-user rate limiting, guest traffic isolation, and can handle over 60 concurrent clients.

The UniFi Express also supports VLAN 802.1Q and zero wait DFS, enhancing its networking capabilities????.

Specification

Mechanical

Weight & Dimensions
98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
302 g (10.7 oz)

Enclosure material
Polycarbonate

Hardware

Networking interface
(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port

Management Interface
Ethernet
Bluetooth

Power method
USB type C (5V DC/3A)

Max. power consumption
10W


2.4 GHz - 22dBm
5 GHz - 25dBm

MIMO
2.4 GHz - 2 x 2 (DL/UL MU-MIMO)
5 GHz - 2 x 2 (DL/UL MU-MIMO)

Throughput rate
2.4 GHz - 573.5 Mbps
5 GHz - 2.4 Gbps

Antenna gain
2.4 GHz - 4 dBi
5 GHz - 5.15 dBi

Antennas
2 x Internal 2.4G/5G WiFi dual-band antenna
1 x Internal 2.4G single-band BT antenna

LCM display
0.96" status display

Button
Factory reset

Operating temperature
-10 to 45° C (14 to 113° F)

Operating humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi standards
802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest traffic isolation
Supported

Concurrent clients
60+

Zero wait DFS
Yes

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160

Box Contents
1 x UniFi UX
1 x USB-C power adapter EU
1 x Ethernet cable
