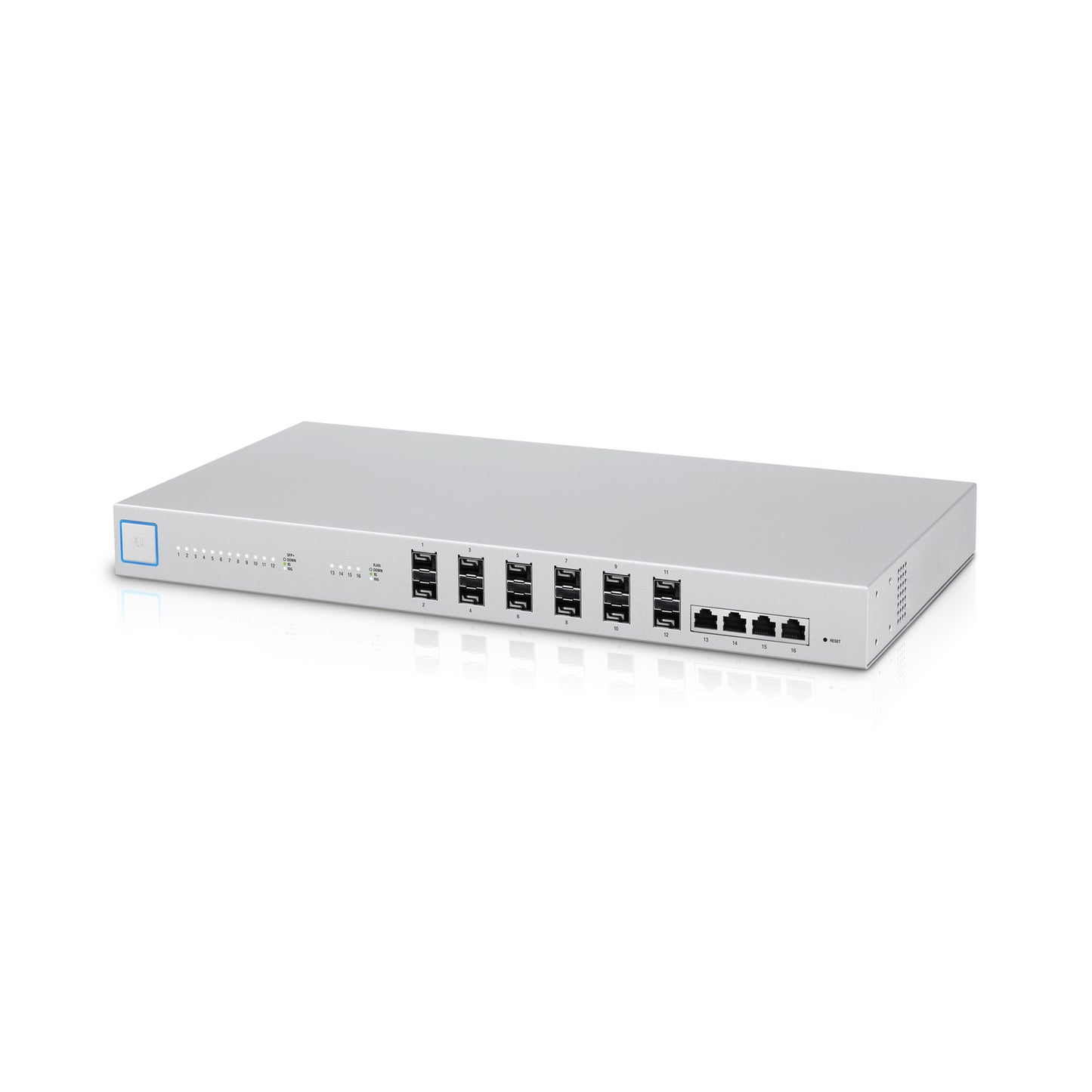

Ubiquiti US-16-XG UniFi 16 Port Layer 2 Managed Gigabit SFP+ Network Switch
Ubiquiti US-16-XG UniFi 16 Port Layer 2 Managed Gigabit SFP+ Network Switch
Regular price
£608.89 GBP
Regular price
Sale price
£608.89 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
10G 16-Port Managed Aggregation Switch
The US-16-XG completes your UniFi ecosystem, with centralized aggregation totaling 320 Gbps.
10G Aggregation Switch for Enterprise Networks
Build and expand your network with Ubiquiti Networks� UniFi� Switch 16 XG, part of the UniFi Enterprise System. The US-16-XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.
10 Gbps Deployment Example
Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.
20 Gbps Deployment Example
Supports 6x US-48, 20 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
10G High-Capacity Links
The US-16-XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US-16-XG offers four 10G RJ45 ports.
Seamless Integration
The UniFi� Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations � all controlled from a single interface.
Specifications
(12) 1G/10G SFP+ Ports
(4) 1G/10G RJ45 Ports
(1) RJ45 Serial Console Port
Non-Blocking Throughput: 160 Gbps
Switching Capacity: 320 Gbps
Forwarding Rate: 238.10 Mpps
Rack Mountable with Mount Brackets (Included)
DC Input Option (Redundant or Stand-Alone)
The US-16-XG completes your UniFi ecosystem, with centralized aggregation totaling 320 Gbps.
10G Aggregation Switch for Enterprise Networks
Build and expand your network with Ubiquiti Networks� UniFi� Switch 16 XG, part of the UniFi Enterprise System. The US-16-XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.
10 Gbps Deployment Example
Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.
20 Gbps Deployment Example
Supports 6x US-48, 20 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
10G High-Capacity Links
The US-16-XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US-16-XG offers four 10G RJ45 ports.
Seamless Integration
The UniFi� Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations � all controlled from a single interface.
Specifications
(12) 1G/10G SFP+ Ports
(4) 1G/10G RJ45 Ports
(1) RJ45 Serial Console Port
Non-Blocking Throughput: 160 Gbps
Switching Capacity: 320 Gbps
Forwarding Rate: 238.10 Mpps
Rack Mountable with Mount Brackets (Included)
DC Input Option (Redundant or Stand-Alone)
