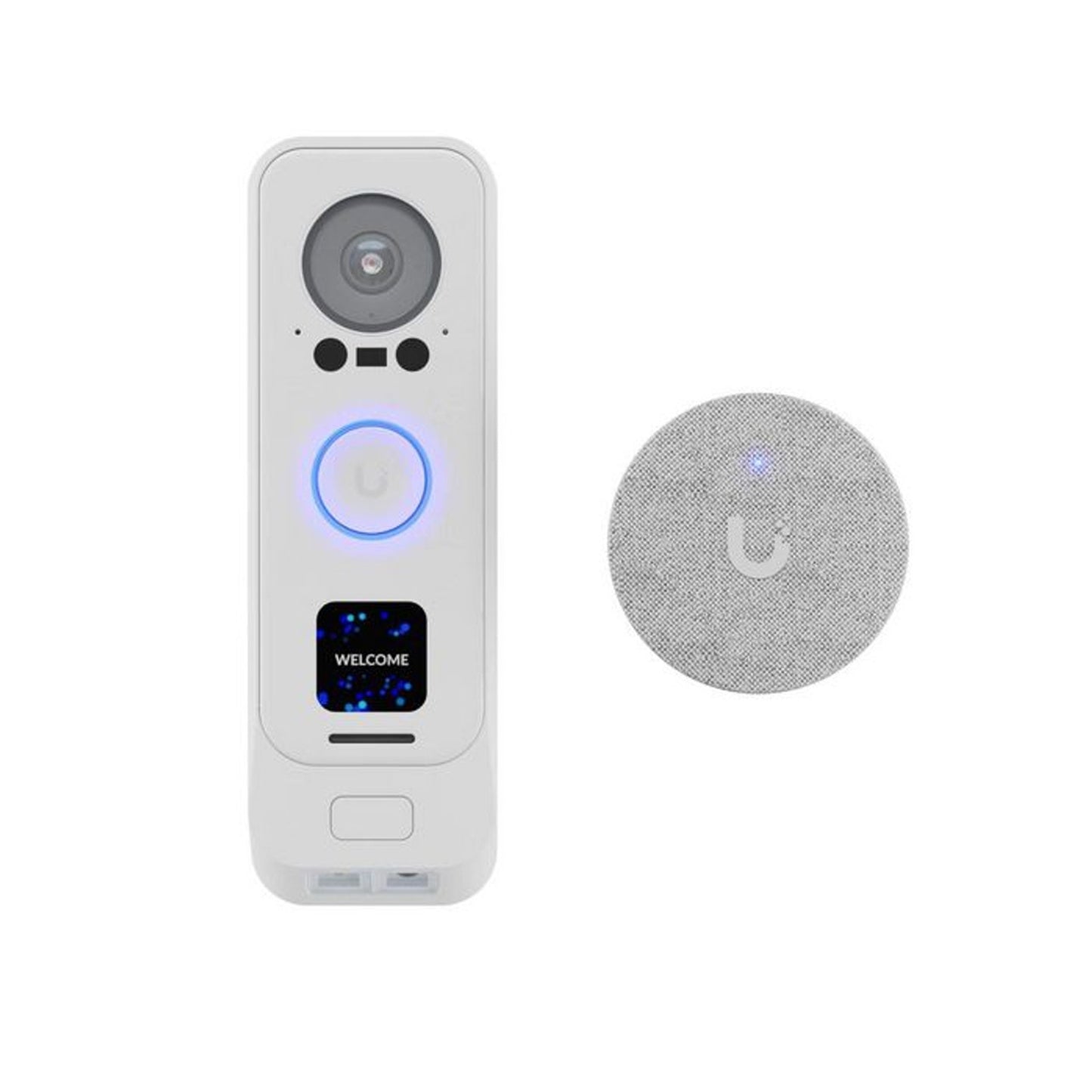

Ubiquiti UniFi G4 Pro UniFi Protect Video Doorbell PoE Kit with Chime - White
Ubiquiti UniFi G4 Pro UniFi Protect Video Doorbell PoE Kit with Chime - White
Regular price
£435.40 GBP
Regular price
Sale price
£435.40 GBP
Unit price
/
per
The Ubiquiti UniFi G4 Doorbell Pro is a UniFi smart doorbell kit including the UniFi G4 Doorbell with integrated PoE and the UP-chime, supporting PoE for plug-and-play installation. The doorbell kit features improved HDR and low-light performance for continuous, HD surveillance in all conditions, as well as a fully programmable welcome display and a secondary package-detection camera. The ease of deployment makes this a great option for domestic installations, but its compatibility with wider UniFi systems such as video recorders and viewport also make it a viable option for commercial access control and monitoring.
The Ubiquiti UniFi Protect G4 Doorbell Pro is a WiFi-enabled video doorbell featuring a 5-megapixel main camera and an 8-megapixel package camera. The main camera on the doorbell is equipped with an IR LED for improved night vision, which, when combined with the built-in porch light, ensures a consistently clear surveillance feed around the clock.
The G4 Doorbell also includes integrated 2-way audio, effectively turning the smart doorbell and surveillance camera into an operational intercom, and is fully compatible with the wider UniFi ecosystem that includes video recorders, viewing ports and network switches from Ubiquiti's range.
The included Ubiquiti UniFi Protect Chime supports up to 80dB speaker sound and can auto-connect to UniFi WiFi, further simplifying the setup process.
Technical Specifications
Mechanical
Dimensions
UVC-G4 Doorbell Pro
Device:
160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
Wall mount:
159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge:
161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount:
161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")
UP-Chime PoE
Device:
62 x 54 mm (2.5 x 2.1")
In-wall mount:
89 x 63.1 mm (3.5 x 2.5")
On-wall mount:
62 x 20.2 mm (2.5 x 0.8")
Weight
UVC-G4 Doorbell Pro
Device:
264 g (9.3 oz)
Wall mount:
56 g (2 oz)
Wedge:
3 g (1.2 oz)
On-wall mount:
53 g (1.9 oz)
UP-Chime PoE
Device:
158 g (5.6 oz)
In-wall mount:
91 g (3.2 oz)
On-wall mount:
28 g (1 oz)
Enclosure material
Aluminum alloy, polycarbonate
Mount material
Wall mount: aluminum alloy
Wedge: polycarbonate
On-wall mount: polycarbonate
Chime mout: polycarbonate, zinc alloy
Weatherproofing
IPX4 (UVC-G4 Doorbell Pro)
Color
White
Optics
Sensor
Main camera: 5MP CMOS
Package camera:
8MP CMOS
Lens
Fixed focal length
View angle
Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode
Built-in IR LED illumination and IR cut filter
Video
Resolution
Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Max. frame rate30 FPS
System
Processor
Quad-core Arm® Cortex®-A53 based chip
Networking interface
UVC-G4 Doorbell Pro: GbE RJ45 port
UP-Chime PoE: 10/100 MbE port
Power method
PoE
Supported voltage range
UVC-G4 Doorbell Pro: 37—57V DC
UP-Chime PoE: 44–57V DC
Max. power consumption
UVC-G4 Doorbell Pro: 7W
UP-Chime PoE: 3.5W
LED
Link/activity
Buttons
Ring button
Factory reset
Ambient operating temperature
UVC-G4 Doorbell Pro: -30 to 40 C (-22 to 104 F)
UP-Chime PoE: 0 to 40 C (32 to 104F)
Ambient operating humidity
UVC-G4 Doorbell Pro: 0 to 90% noncondensing
UP-Chime PoE: 10 to 90% noncondensing
Certifications
CE, FCC, IC
Audio
Microphone
Yes (Can be disabled for the Doorbell)
Speaker
Yes
Buzzer
Yes (UP-Chime PoE)
Software
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
