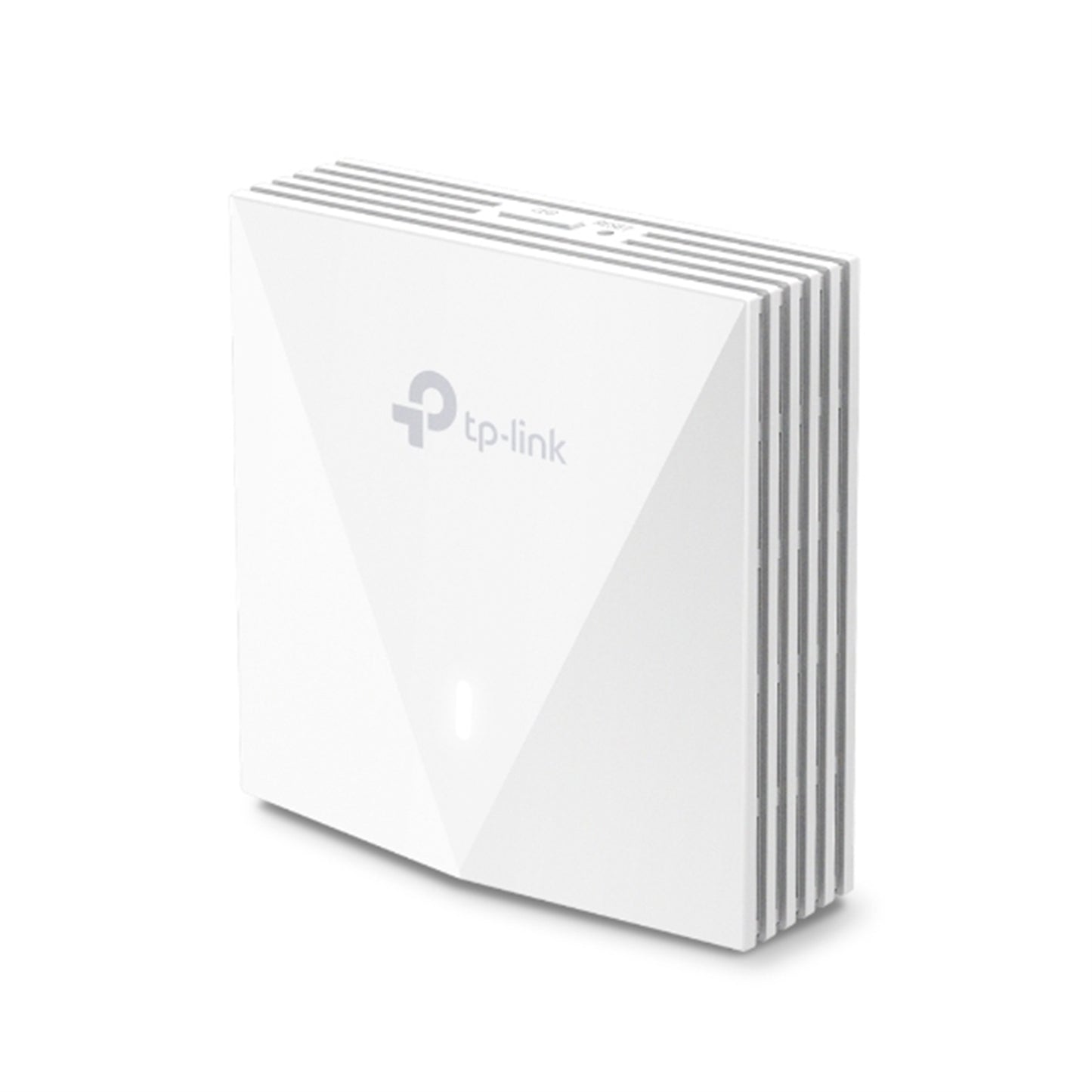

TP-Link Omada AX3000 EAP650-Wall WiFi 6 Access Point

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point

Key Features
Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
Gigabit Port: Connect wired devices with one downlink gigabit port.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.

Better User Experience with High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.

More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Gigabit Ports to Bridge Network
The gigabit downlink port allows to connect wired device to the gigabit network.

Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.

Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.

Specifications

HARDWARE FEATURES

Interface
Uplink: 1 x 10/100/1000 Mbps Ethernet Port
Downlink: 1 x 10/100/1000 Mbps Ethernet Port

Physical Security Lock
No

Button
Reset, LED

Power Supply
802.3af/at PoE

Power Consumption
EU: 11.5 W

Dimensions
86 x 86 x 42.6 mm (3.4 x 3.4 x 1.7 in)

Antenna
2 Dual-Band Antennas
2.4 GHz: 2 x 3 dBi
5 GHz: 2 x 5 dBi

Mounting
Wall Plate Mounting (Kits included)

WIRELESS FEATURES

Maximum Number of Wireless Clients
100+

Concurrent Clients
100+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps

Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
CE:
<20 dBm (2.4GHz, EIRP)
<22 dBm (5GHz band1 & 2, EIRP)
<22 dBm (5GHz band3, EIRP)

MANAGEMENT

Omada App
Yes

Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification
CE, RoHS

Package Contents
AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
Installation Guide
Mounting Kits

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Environment
Operating Temperature: 0–40 ? (32–104 ?)
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
