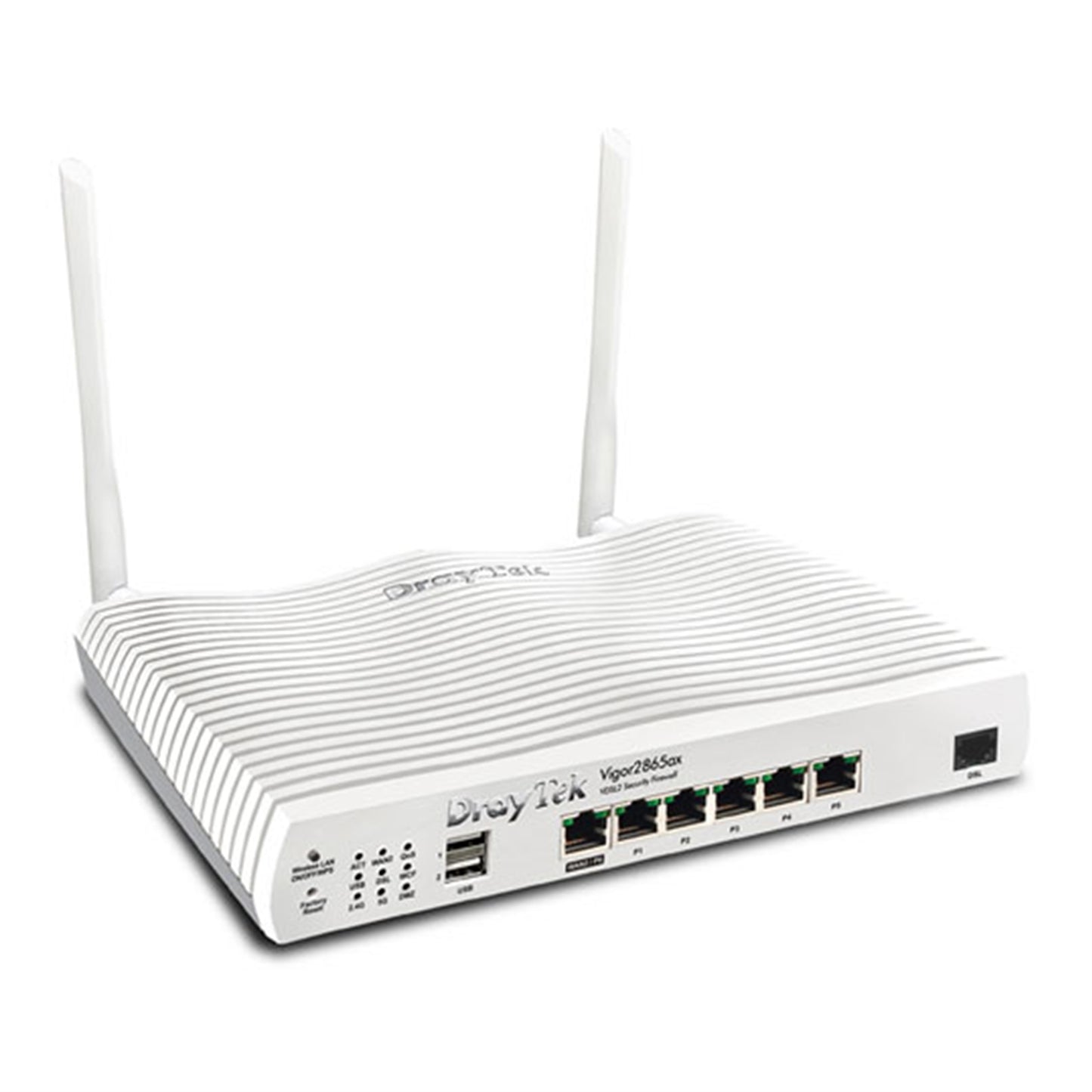

DrayTek V2865AX-K Vigor 2865ax Wireless 6 AX Multi-WAN Firewall VDSL Modem Router
DrayTek V2865AX-K Vigor 2865ax Wireless 6 AX Multi-WAN Firewall VDSL Modem Router
Regular price
£404.50 GBP
Regular price
Sale price
£404.50 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
VDSL and Ethernet Load Balancer
The Vigor 2865ax is a VDSL and Ethernet WAN router featuring VPN, advanced routing features, firewall, content filtering, bandwidth management and more. Connect the Vigor 2865 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.
Featuring high throughput with Load Balancing and Failover connectivity, suitable for handling Fibre to the Premises (FTTP) and Gigabit Internet connections. Offering up to 950Mbps per-WAN of Hardware Accelerated throughput while retaining its full feature set.
With Wi-Fi 6 AX3000 wireless, it provides ultra fast and efficient wireless coverage, to your network's computers and devices. In addition, the router can connect to Wireless networks for Internet access, allowing it to make use of Mobile Hotspot wireless connections and nearby wireless networks, where for instance a neighbour's wireless network could provide an emergency backup connection.
Mesh Wireless
The Vigor 2865 'ax' wireless routers can be used as part of DrayTek's Mesh wireless system, allowing the router to work as the Mesh Root, providing Internet access and management of Mesh VigorAPs directly, all without installing network cabling.
VLANs are also bridged across Mesh wireless, so if you have multiple SSIDs or separate network segments, those can also work across Mesh with DrayTek's wireless routers and VigorAPs.
For cabled wireless networks, the router's Central AP Management greatly reduces installation time and provides an easy way to manage VigorAPs, including auto-provisioning, so new VigorAPs are configured by the router when they're plugged into the router's network.
Wi-Fi 6 - AX3000 Performance
The Vigor 2865ax features ultra-fast and highly efficient Wi-Fi 6, or 802.11ax. OFDMA allows the router to send to more than one device at a time, splitting up wireless frequency into blocks, assigning more to users that need more e.g. video data, less to users that need less e.g. VoIP calls, then sending all at once. Which ensures all users have less of a wait, greatly improving efficiency. It allows the router to effectively and responsively, serve more wireless clients.
Ideal VPN Router for SMB
A feature central to DrayTek routers is its VPN (Virtual Private Networking) capabilities. A VPN enables you to link remote offices and branch offices back to HQ, or home-based/mobile teleworkers back to your office.
The Vigor 2865 is an ideal VPN router, with 300 Mbps standard IPsec VPN throughput and up to 50 concurrently active VPN tunnels.
IPsec Hardware Acceleration boosts performance, up to 800 Mbps for 16 VPN tunnels, allowing securely encrypted tunnels between sites to make full use of high speed Internet connections.
It supports all common industry standard VPN protocols, for it to connect to VPN services, link remote offices and handle connections from all types of VPN clients. Supporting IPsec IKEv1 & IKEv2 protocols with EAP and XAuth authentication, DrayTek's SSL VPN and L2TP for both LAN to LAN and Dial-In teleworker VPNs. In addition, teleworkers can connect to the router with OpenVPN.
User management for Dial-In Teleworkers is managed through the router's web interface, with mOTP 2-factor authentication available for IPsec, L2TP and SSL VPN Teleworker connections. Alternatively, authentication for Dial-In Teleworker connections can be forwarded to your Active Directory (LDAP) or RADIUS or TACACS+ server.
Connect VPNs from Behind NAT with DrayTek's VPN Matcher
A typical requirement for connecting a VPN tunnel between two points is that the VPN server must be directly accessible on the public Internet. Sometimes this can be achieved with NAT Port Forwarding if the router is located behind another router, but if the router is connected to 4G Mobile Broadband or is behind Carrier-Grade NAT (CG-NAT), connecting to that VPN server may be impossible.
DrayTek's new VPN Matcher service helps DrayTek routers behind NAT to allow Dial-In Teleworkers to connect, or connect two DrayTek VPN routers that are behind NAT and could not normally establish a VPN tunnel.
Connecting Remote Sites with LAN to LAN VPN
Supporting up to 32 concurrently active VPN tunnels, the Vigor 2865 series is ideal for connecting multiple sites or home offices together with fast and secure IPsec VPN tunnels.
Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing remote desktop, file sharing and seamless access to other resources and devices.
DrayTek SSL VPN for Dial-In Teleworkers & LAN to LAN
The Vigor 2865 supports up to 16 active DrayTek SSL VPN tunnel connections. These are encrypted tunnels linking your teleworkers or remote DrayTek Vigor routers back to your main office using SSL/TLS technology - the same encryption that you use for secure web sites such as your bank.
Teleworkers can easily create a secure SSL VPN tunnel to the DrayTek Vigor 2865 using the free DrayTek Smart VPN Client app. Available for Windows, macOS, Apple iOS (iPad, iPhone) and Android devices.
5+1 Gigabit LAN Ports with VLANs
The Vigor 2865 series provides up to 6 Gigabit LAN ports for wired links to Computers, Servers and Network Attached Storage.
With 5 dedicated LAN ports and one flexible LAN/WAN port, the Vigor 2865 can connect up to 6 devices directly with a single Ethernet WAN configuration, or 5 devices with a dual Ethernet WAN configuration.
With Multiple LAN subnets and VLANs, the Vigor 2865 can manage up to 8 separate networks. For instance, an internal network with a separate network for Guests to use, completely separate from the private network. Each network with its own Content Filtering, Firewall, Quality of Service and Route Policy applied.
The router has full support for 802.1Q VLAN tagging, so that these subnets can be passed to other devices that support VLAN tags, such as the DrayTek VigorSwitch G1080 8-port switch, for additional network ports.
The Wireless LAN also links to these VLANs, making the same Guest & Private networks possible simply using different wireless SSIDs. Or connect up a DrayTek VigorAP wireless access point, such as the VigorAP 903 to do the same, spanning the router's own wireless and any connected wireless APs.
Designed for Central Management
The Vigor 2865 series (along with most other DrayTek routers, Access points and switches) can be centrally managed by our VigorACS central management platform.
This scalable solution provides visibility, control and reporting of your entire DrayTek product estate, ideal for dealers/SIs managing customers' devices or any user who wants to know what's going on with their devices. VigorACS also provides features like automated/bulk firmware updates, VPN management and alarms for connectivity or other issues.
Robust & Comprehensive IPv4 / IPv6 Firewall
Security is always taken seriously with DrayTek routers. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems.
The DrayTek object-based firewall enables you to create combinations of Firewall rules and Content Filtering to suit a home or small office environment, applying Content Filtering to the whole network, only specified devices or just the network that guests can connect to.
The Vigor 2865 supports both IPv4 and IPv6 with Dual-Stack IPv4/IPv6. Advanced networking features, such as the object-based Firewall, Quality of Service, Content Filtering and VLANs support both IPv4 and IPv6 networks.
Web Content Filtering with DNS Filter
The content control features of the Vigor 2865 allow you to set restrictions on web site access, blocking download of certain file or data types, blocking specific web sites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or universal and according to time schedules.
Content filtering can also block sites using HTTPS/SSL where URLs are encrypted (and normal routers cannot block).
Using the GlobalView service, you can block whole categories of web sites (e.g. gambling, adult sites etc.), subject to an annual subscription, which is continuously updated with new or changed site categorisations or sites which have become compromised (such as infected with Malware). A free 30-day trial is included with your new router.
High Availability - Hardware Failover
For even greater resilience, the Vigor 2865 series provides High Availability (HA), with both a primary and secondary router able to provide connectivity to your network and subnets.
In the event of the primary unit failing, the secondary unit will take its place on the network, automatically switching over to resume Internet, routing and VPN connectivity with no intervention required. This can remove the possibility of a single point of failure within your routers.
With Config Sync, the two routers are managed as a single unit, so that any changes made to the primary router will automatically propagate to the secondary router, ensuring it’s ready to take over at any time.
DrayDDNS - DrayTek Dynamic DNS Address
DrayTek provides a free Dynamic DNS address to each Vigor 2865 router, allowing you to link the router's current IP address to a memorable "drayddns.com" hostname, such as "myrouter.drayddns.com".
Manage Guest WiFi with Hotspot Web Portal
DrayTek routers simplify the management of Guest Wireless with the Hotspot Web Portal. This customizable captive portal can be applied to both the router's wireless networks and LAN interfaces, making it suitable for use with wireless access points. Authentication can be managed via Google/Facebook or through an external web Portal service such as Purple WiFi with RADIUS. Upon connecting to the wireless network, users are presented with your company's branding and information. Depending on the setup, users can click-through, provide their details, or enter a PIN from a voucher generated by the router. The router can limit user access based on connection time or bandwidth usage.
Quality of Service & Bandwidth Control
Ensure priority for latency-sensitive applications on your network with Quality of Service (QoS). App QoS makes setting up Quality of Service straightforward. Simply select the applications or services to prioritize, such as Zoom or Skype. Utilize 4 separate queues to prioritize servers & PCs (by IP address), services such as VoIP or DNS, or packet tagging used by IP phones with 802.1p and DSCP support. Auto Voice VLAN automatically prioritizes VoIP calls as they pass through the router without additional configuration. Control throughput by setting speed limits for individual clients, groups of IPs, or a whole subnet, such as a Guest network.
Central AP & Switch Management
The Vigor 2865 allows for centralized management of DrayTek VigorAP access points and VigorSwitch switches connected to the router. Manage and administer multiple AP & Switch devices from a single router, streamlining network management across your building or campus.
