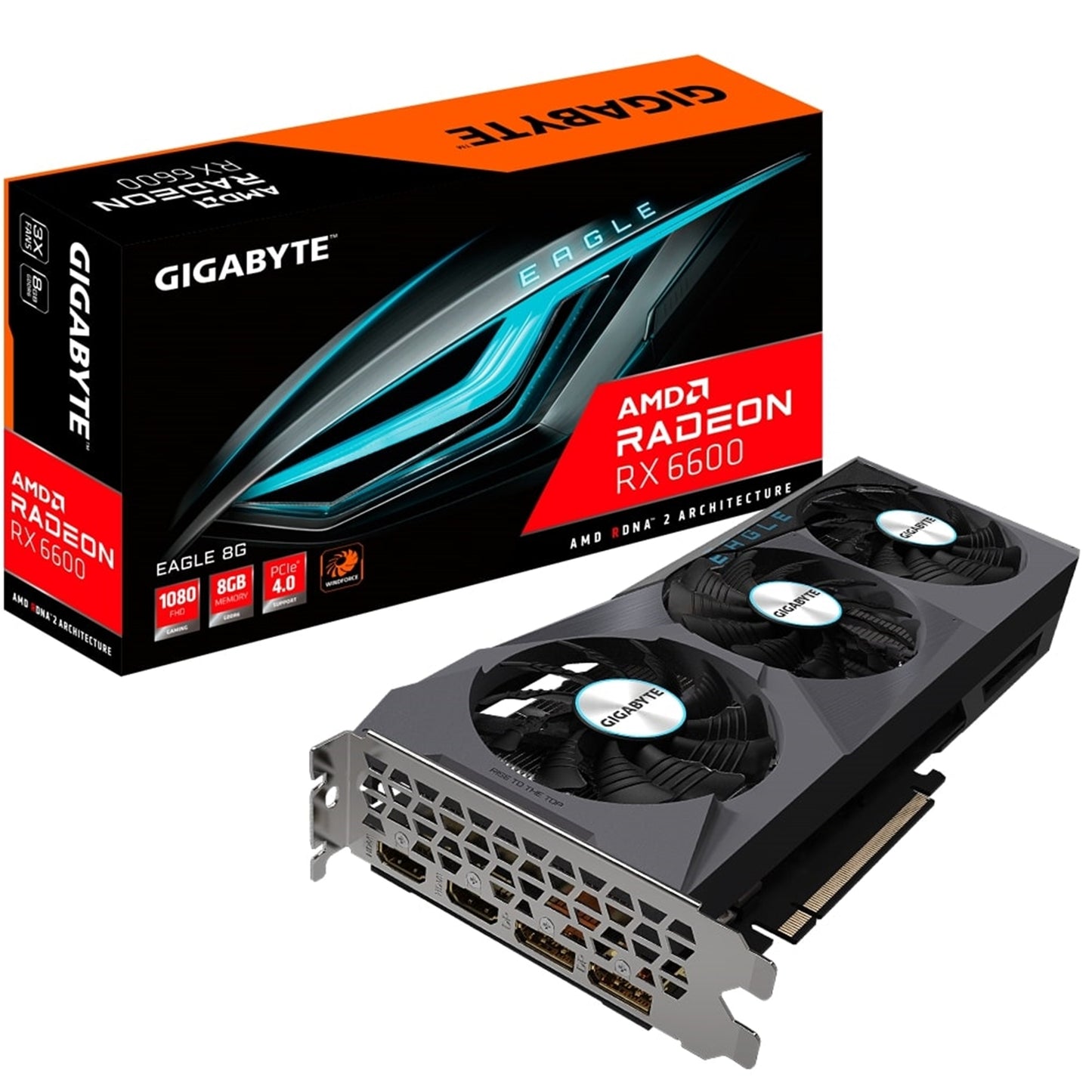

Gigabyte AMD Radeon RX 6600 EAGLE 8G Graphics Card, 8GB GDDR6, 1792 Streams, 2491 MHz Boost Clock, Triple Fan, 2x DisplayPorts / 2x HDMI Ports
Gigabyte AMD Radeon RX 6600 EAGLE 8G Graphics Card, 8GB GDDR6, 1792 Streams, 2491 MHz Boost Clock, Triple Fan, 2x DisplayPorts / 2x HDMI Ports
Regular price
£256.82 GBP
Regular price
Sale price
£256.82 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Radeon RX 6600 EAGLE 8G
Key Features
Powered by AMD RDNA 2 Radeon RX 6600
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
Screen cooling
Graphene nano lubricant
Protection back plate
CORE CLOCK
Boost Clock : up to 2491 MHz
Game Clock : up to 2044 MHz
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Specifications
Graphics Processing
Radeon RX 6600
Core Clock
Boost Clock : up to 2491 MHz
Game Clock : up to 2044 MHz
Stream Processors
1792
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
224 GB/s
Card Bus
PCI-E 4.0 x 8
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=282 W=113 H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin*1
Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
Accessories
Quick guide
Key Features
Powered by AMD RDNA 2 Radeon RX 6600
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
Screen cooling
Graphene nano lubricant
Protection back plate
CORE CLOCK
Boost Clock : up to 2491 MHz
Game Clock : up to 2044 MHz
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Specifications
Graphics Processing
Radeon RX 6600
Core Clock
Boost Clock : up to 2491 MHz
Game Clock : up to 2044 MHz
Stream Processors
1792
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Memory Bandwidth (GB/sec)
224 GB/s
Card Bus
PCI-E 4.0 x 8
Digital max resolution
7680 x 4320
Multi-view
4
Card size
L=282 W=113 H=41 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
500W
Power Connectors
8 pin*1
Output
DisplayPort 1.4a x 2
HDMI 2.1 x 2
Accessories
Quick guide
