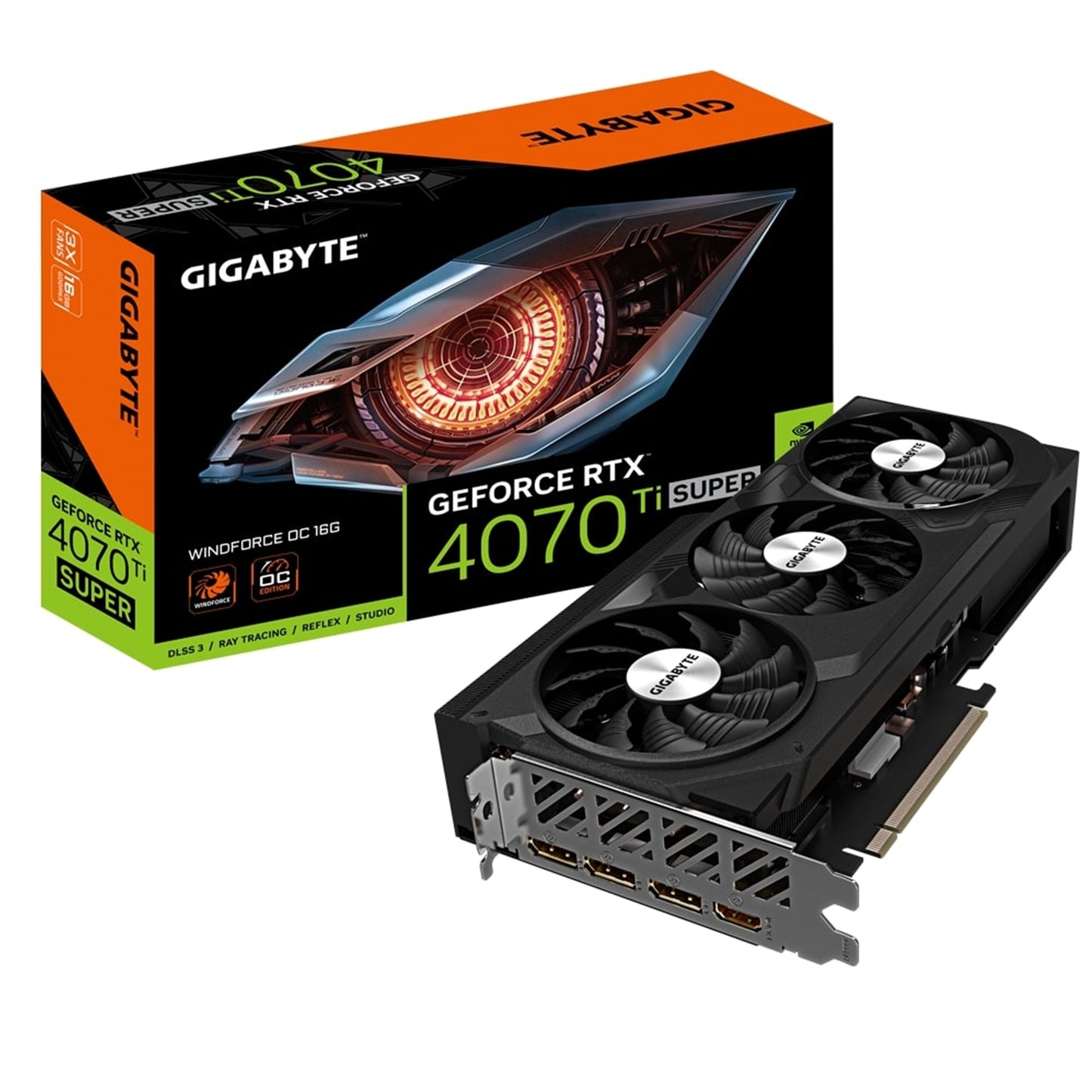

Gigabyte NVIDIA GeForce RTX 4070 Ti SUPER WINDFORCE OC Graphics Card, 16GB GDDR6X, 8448 CUDA Cores, 2625 MHz Core Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Port
Gigabyte NVIDIA GeForce RTX 4070 Ti SUPER WINDFORCE OC Graphics Card, 16GB GDDR6X, 8448 CUDA Cores, 2625 MHz Core Clock, Triple Fan, 3x DisplayPorts / 1x HDMI Port
Regular price
£1,004.73 GBP
Regular price
Sale price
£1,004.73 GBP
Unit price
/
per
PLEASE NOTE THAT THESE CARDS ARE DESIGNED FOR GAMING PURPOSES AND MAY BE UNSUITABLE FOR MINING OR BLOCKCHAIN PURPOSES.
THESE CARDS COULD CONTAIN TECHNOLOGY TO RESTRICT PERFORMANCE IN CERTAIN SITUATIONS.
WARRANTIES FOR CARDS USED FOR THESE PURPOSES CAN BE INVALIDATED BY THE MANUFACTURER IN THE EVENT OF A FAILURE - PLEASE CHECK WITH THE MANUFACTURER DIRECTLY FOR FURTHER DETAILS.
KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX 4070 Ti SUPER
Integrated with 16GB GDDR6X 256bit memory interface
WINDFORCE Cooling System
Protection metal back plate
CORE CLOCK
2625 MHz (Reference card: 2610 MHz)
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications
Graphics Processing
GeForce RTX 4070 Ti SUPER
Core Clock
2625 MHz (Reference card: 2610 MHz)
CUDA Cores
8448
Memory Clock
21 Gbps
Memory Size
16 GB
Memory Type
GDDR6X
Memory Bus
256 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=261 W=126 H=50 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
750W
Power Connectors
16 pin *1
Output
DisplayPort 1.4a x 3
HDMI 2.1a x 1
Accessories
Quick guide
One 16-pin to two 8-pin power adaptor
