ASROCK

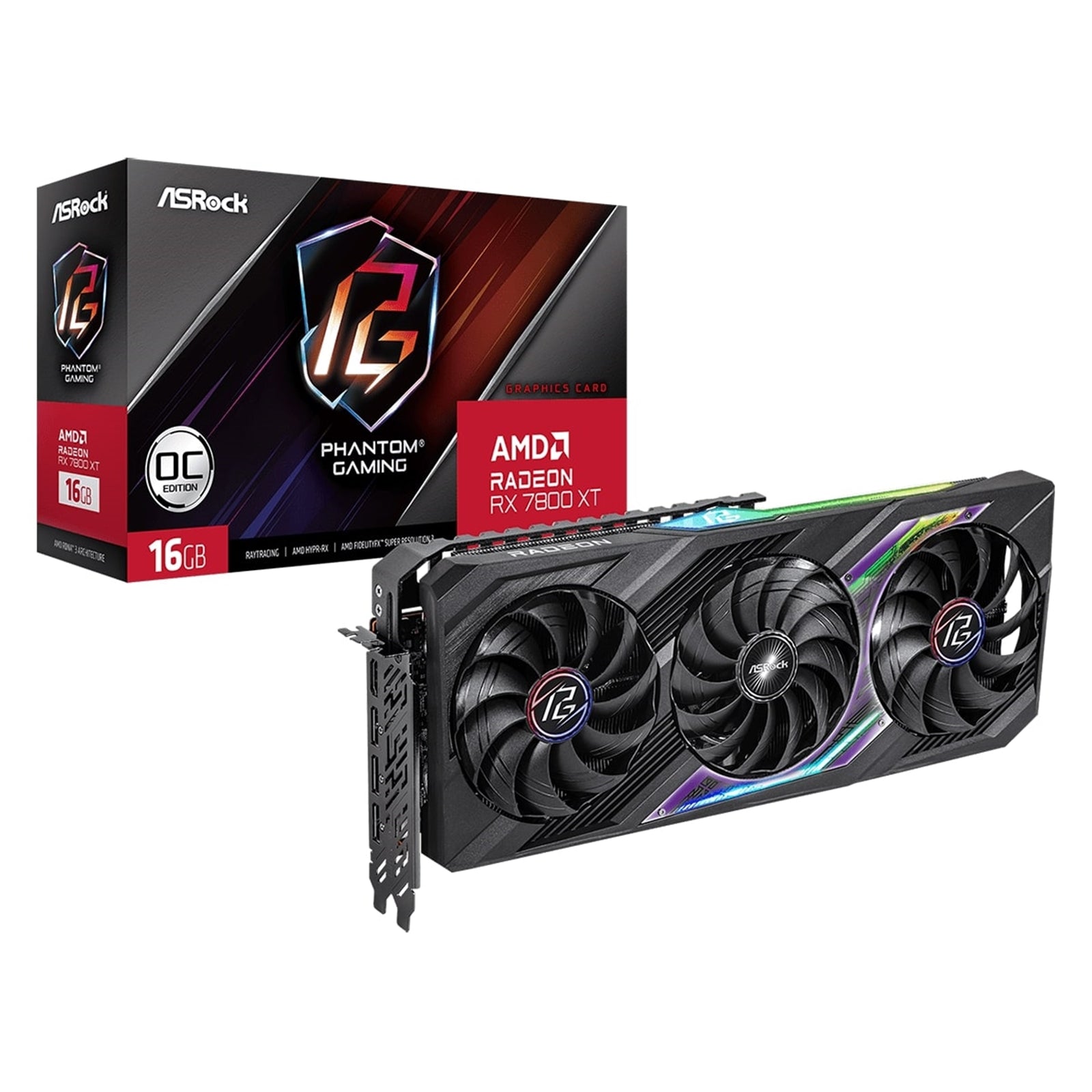

ASRock AMD Radeon RX 7800 XT Phantom Gaming 16GB OC Graphics Card, 16GB GDDR6, 3840 Streams, 2565 MHz Boost Clock, Triple Fan, RGB, 3x DisplayPorts / 1x HDMI Port

ASRock AMD Radeon RX 7800 XT Phantom Gaming 16GB OC Graphics Card, 16GB GDDR6, 3840 Streams, 2565 MHz Boost Clock, Triple Fan, RGB, 3x DisplayPorts / 1x HDMI Port

Regular price £644.98 GBP
Regular price Sale price £644.98 GBP
Sale Sold out
Shipping calculated at checkout.
AMD Radeon RX 7800 XT Phantom Gaming 16GB OC

Clock: GPU / Memory
Boost Clock: Up to 2565 MHz/ 19.5 Gbps
Game Clock: 2254 MHz/ 19.5 Gbps

Key Specification
AMD Radeon RX 7800 XT
16GB GDDR6 on 256-bit Memory Bus
60 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
64MB AMD Infinity Cache technology
Microsoft DirectX 12 Ultimate
PCI Express4.0 Support
2 x 8-pin Power Connector
Output: 3 x DisplayPort 2.1, 1 x HDMI 2.1

Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Stylish Metal Backplate
Striped Ring Fan
Air Deflecting Fin
Ultra-fit Heatpipe
0dB Silent Cooling
Super Alloy Graphics Card
ASRock Tweak 2.0

Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

Phantom Gaming 3X Cooling System For Cool and Silent
Crafted for the best balance between the thermal efficiency and silence by all the details.

Striped Ring Fan Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling Spin For Cooling, Stop For Silence
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-fit Heatpipe Consolidated to Maximize the Contact
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base Maximize GPU Contact Area
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding Improve Heat Dissipation
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad Better Heat Transfer
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque Optimized Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Polychrome SYNC Create your own unique colorful light effects
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch On or Off? Switch as You Want
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

Reinforced Metal Frame Be solid. No sag
Enhances the structure to prevent the PCB from being bent.

Stylish Metal Backplate Solid, Fancy, Cool
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

ASRock Tweak 2.0 Pro and Easy-to-Use Tuning Utility
Provides the smart fan speed control and instant performance tweaking.

8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.

AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

Specifications

Graphics Engine
AMD Radeon RX 7800 XT Graphics

Bus Standard
PCI Express4.0 x16

DirectX
12 Ultimate

OpenGL
4.6

Memory
GDDR6 16GB

Engine Clock
Boost Clock up to: 2565 MHz
Game Clock: 2254 MHz

Stream Processors
3840

Compute Units
60

Memory Clock
19.5Gbps

Memory Interface
256-bit

Resolution
Digital Max Resolution: 7680x4320

Interface
1 x HDMI 2.1 (up to FRL 12Gbps)
3 x DisplayPort 2.1 with DSC (up to UHBR3 13.5Gbps)

HDCP
Yes

Multi-view
4

Recommended PSU
800W

Power Connector
2 x 8-pin

Accessories
1 x Quick Installation Guide

Dimensions
328 x 140 x 53 mm

Net Weight
1450g
