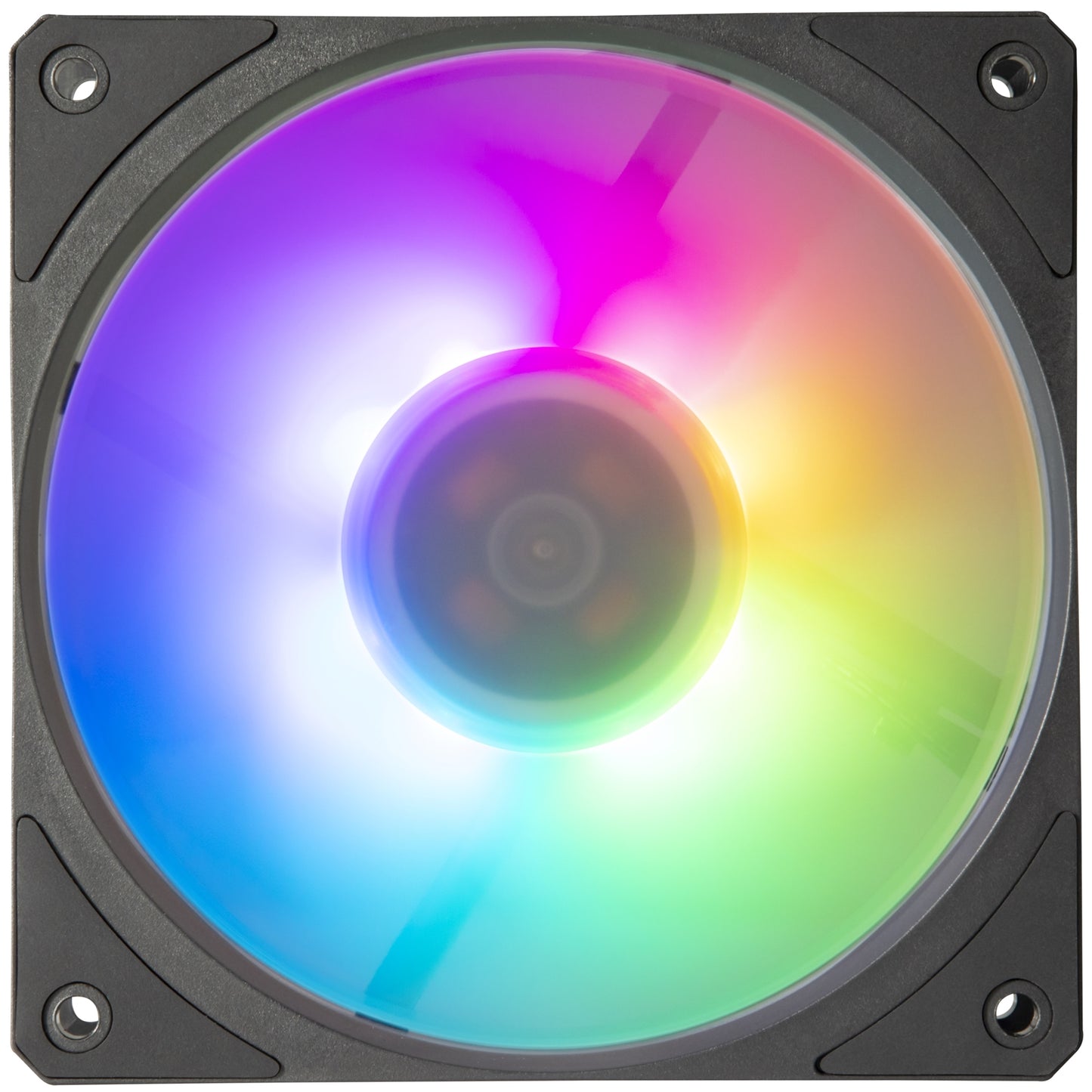

Cooler Master Mobius 120P ARGB Fan, 120mm, 2400RPM, 4-Pin PWM Fan & 3-Pin ARGB Connectors, Interconnecting Ring Blade Design, Pressure Air Acceleration, Addressable Gen 2 RGB
Cooler Master Mobius 120P ARGB Fan, 120mm, 2400RPM, 4-Pin PWM Fan & 3-Pin ARGB Connectors, Interconnecting Ring Blade Design, Pressure Air Acceleration, Addressable Gen 2 RGB
Regular price
£38.31 GBP
Regular price
Sale price
£38.31 GBP
Unit price
/
per
MOBIUS 120P ARGB
MORE BALANCE, MORE BURST
- Ring Blade Design (RBD)
- Pressure Air Acceleration
- Absolute Acoustics
- Luminescent Light Effects
- Addressable Gen 2 RGB
PERFECTING ENGINEERING
Cooler Master’s Mobius 120P ARGB is our new series of performance fans. With our enhanced Ring Blade Design, the Mobius Series optimizes both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.
RING BLADE DESIGN (RBD)
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.
LOOP DYNAMIC BEARING
New loop dynamic bearing design utilizes thick oil coating and lubrication to allow for stable performance
OIL REFLOW
The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.
DUST PROOFING
The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.
ANTI-SWAY SYSTEM
Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.
PRESSURE AIR ACCELERATION
Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.
ABSOLUTE ACOUSTICS
Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.
Acoustic Testing Anechoic Chamber for ISO 3745
FFT analyzer: AD-3524 O Microphone: B&K 2235
Sound Pressure: IS0-7779
Sound Power: ISO-7779
Sound Quality: 1S0-532B /ISO
Background noise: below 6dBA
VARIOUS SPEEDS, VARIOUS FUNCTIONS
The Mobius Series offer various speeds for distinct usages. With the Mobius 120 operating up to 2050rpm, it is perfect for your case and chassis air intake. The Mobius 120P ARGB spins up to 2400rpm, designed to handle performance for air and liquid cooling.
ARGB MOTHERBOARD COMPATIBILITY
Addressable Gen 2 RGB syncs with Cooler Master’s MasterPlus+ software and dedicated controller, allowing customization of individual LED colors, effects, brightness and more – all from an intuitive, convenient interface. (controller sold separately)
Product Number
MFZ-M2DN-24NP2-R1
Exterior Colour
Black
Fan Dimensions ( L x W x H )
120 x 120 x 25 mm
Fan Profiles
Addressable Gen 2 RGB
Fan Speed
0-2400 RPM ± 10%
Fan Airflow
75.2 CFM
Fan Noise Level
30 dBA
Fan Bearing Type
Loop Dynamic Bearing
Fan Air Pressure
3.63 mmH2O
Fan MTTF
>200,000 Hours
Fan Power Connector
4-Pin (PWM)
Fan Rated Voltage
12VDC
Fan Rated Current
0.18A
Fan Safety Current
0.35A
Fan Power Consumption
2.16W
RGB Connector
3-Pin ARGB
RGB Rated Voltage
5V DC
RGB Rated Current
0.48A
Fan Weight
179g
LED Lighting
ARGB
MORE BALANCE, MORE BURST
- Ring Blade Design (RBD)
- Pressure Air Acceleration
- Absolute Acoustics
- Luminescent Light Effects
- Addressable Gen 2 RGB
PERFECTING ENGINEERING
Cooler Master’s Mobius 120P ARGB is our new series of performance fans. With our enhanced Ring Blade Design, the Mobius Series optimizes both performance and acoustics, catering to a dynamic range of applications from case, liquid or air, to overclocking and intense gaming.
RING BLADE DESIGN (RBD)
Interconnecting fan blades designed for a reinforced and rigid structure, eliminating vibration for stable and fluid fan operation.
LOOP DYNAMIC BEARING
New loop dynamic bearing design utilizes thick oil coating and lubrication to allow for stable performance
OIL REFLOW
The oil flows back to the sealed bearing to create constant lubrication against friction and increases the life span of the fan.
DUST PROOFING
The sealed and concave position of the bearing prevents air and dust exposure and ensures a smooth transfer of motion.
ANTI-SWAY SYSTEM
Magnetic ring prevents bearing shaft from tilting, stabilizing the fan to prevent fan blade obstruction under various orientations, as well as oil spray.
PRESSURE AIR ACCELERATION
Angled inner frame rim with chamfered side vents boost airflow draw, maximizing force induced air pressure and diminishing dead air.
ABSOLUTE ACOUSTICS
Sound output fine tuned to the optimal prominence ratio to achieve sub 6dB noise levels without performance sacrifice.
Acoustic Testing Anechoic Chamber for ISO 3745
FFT analyzer: AD-3524 O Microphone: B&K 2235
Sound Pressure: IS0-7779
Sound Power: ISO-7779
Sound Quality: 1S0-532B /ISO
Background noise: below 6dBA
VARIOUS SPEEDS, VARIOUS FUNCTIONS
The Mobius Series offer various speeds for distinct usages. With the Mobius 120 operating up to 2050rpm, it is perfect for your case and chassis air intake. The Mobius 120P ARGB spins up to 2400rpm, designed to handle performance for air and liquid cooling.
ARGB MOTHERBOARD COMPATIBILITY
Addressable Gen 2 RGB syncs with Cooler Master’s MasterPlus+ software and dedicated controller, allowing customization of individual LED colors, effects, brightness and more – all from an intuitive, convenient interface. (controller sold separately)
Product Number
MFZ-M2DN-24NP2-R1
Exterior Colour
Black
Fan Dimensions ( L x W x H )
120 x 120 x 25 mm
Fan Profiles
Addressable Gen 2 RGB
Fan Speed
0-2400 RPM ± 10%
Fan Airflow
75.2 CFM
Fan Noise Level
30 dBA
Fan Bearing Type
Loop Dynamic Bearing
Fan Air Pressure
3.63 mmH2O
Fan MTTF
>200,000 Hours
Fan Power Connector
4-Pin (PWM)
Fan Rated Voltage
12VDC
Fan Rated Current
0.18A
Fan Safety Current
0.35A
Fan Power Consumption
2.16W
RGB Connector
3-Pin ARGB
RGB Rated Voltage
5V DC
RGB Rated Current
0.48A
Fan Weight
179g
LED Lighting
ARGB
