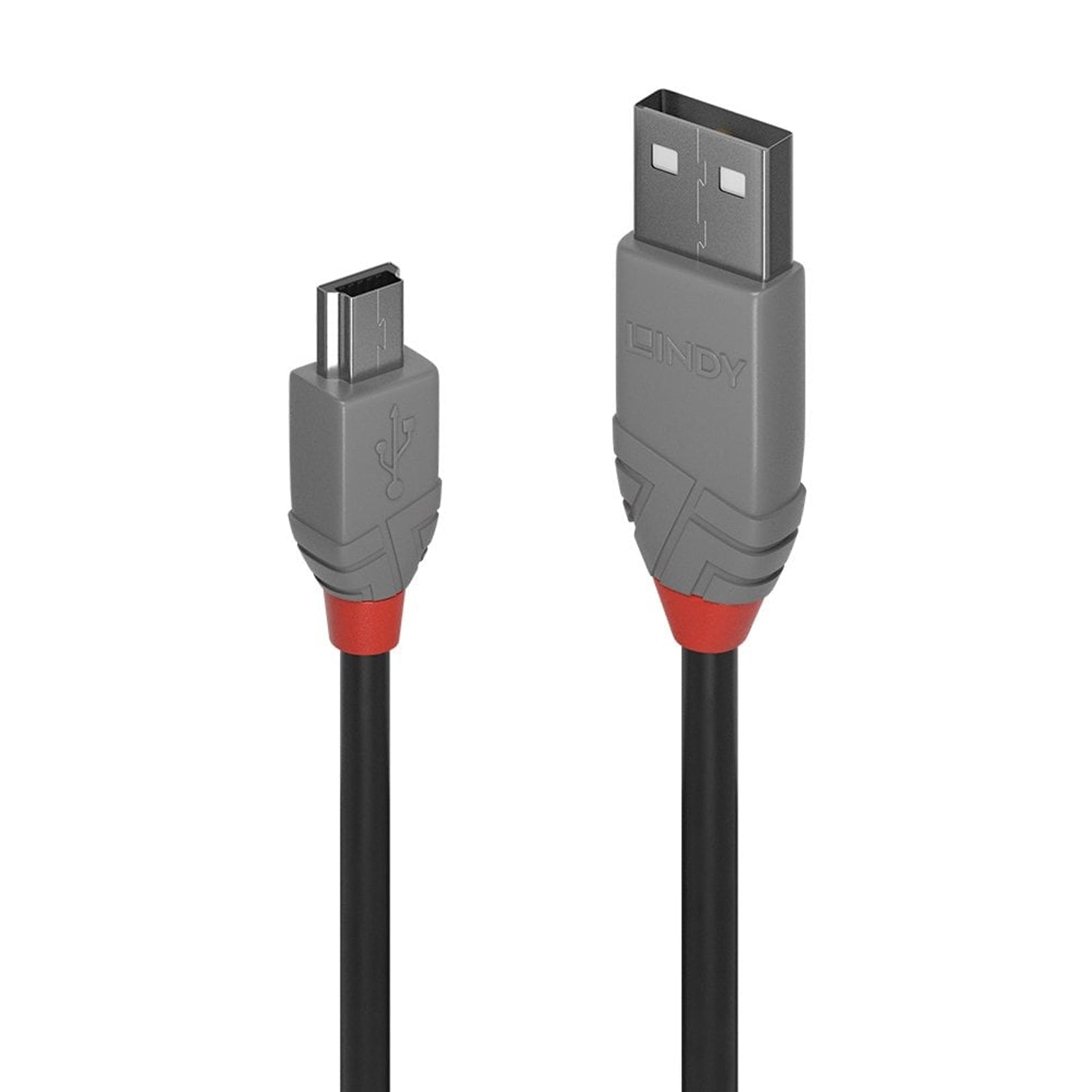

LINDY 36725 5m USB 2.0 Type A to Mini-B Cable, Anthra Line, Double shielded cable, corrosion resistant tinned copper conductors, USB 2.0, 480Mbps; 10 year warranty
LINDY 36725 5m USB 2.0 Type A to Mini-B Cable, Anthra Line, Double shielded cable, corrosion resistant tinned copper conductors, USB 2.0, 480Mbps; 10 year warranty
Regular price
£11.08 GBP
Regular price
Sale price
£11.08 GBP
Unit price
/
per
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Mini-B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to Mini-B cables are available in lengths from 0.2m to 5m.
Connectors:
Connector A:
USB 2.0 Type A Male
Connector B:
USB 2.0 Type Mini-B Male
Housing Material:
PVC
Connector Plating:
Nickel
Pin Construction:
Copper
Pin Plating:
24K Gold
Dimensions, USB A (approx.) WxDxH:
15.5x35x7.8mm (0.61x1.38x0.31in)
Dimensions, USB Mini-B (approx.) WxDxH:
10x24x7.6mm (0.29x0.95x0.30in)
Cable Construction:
Length:
5m (16.44ft)
Standard:
USB 2.0
Colour:
Black
Type:
Round
Jacket Diameter:
3.8mm (0.15in)
Jacket Material:
PVC
Conductor Material:
Tinned Copper
Conductor Gauge:
28AWG
Shielding:
Aluminium Magnesium Braid
Specifications:
Supported Bandwidth:
480Mbps
Nominal Attenuation:
5.8db/km
Minimum Bend Radius:
16mm (0.63in)
Operating Temperature:
0°C - 60°C (32°F - 140°F)
Storage Temperature:
0°C - 60°C (32°F - 140°F)
Miscellaneous:
Packaging Type:
Polybag
Warranty (Years):
10
Certificated:
RoHS, REACH, UL
