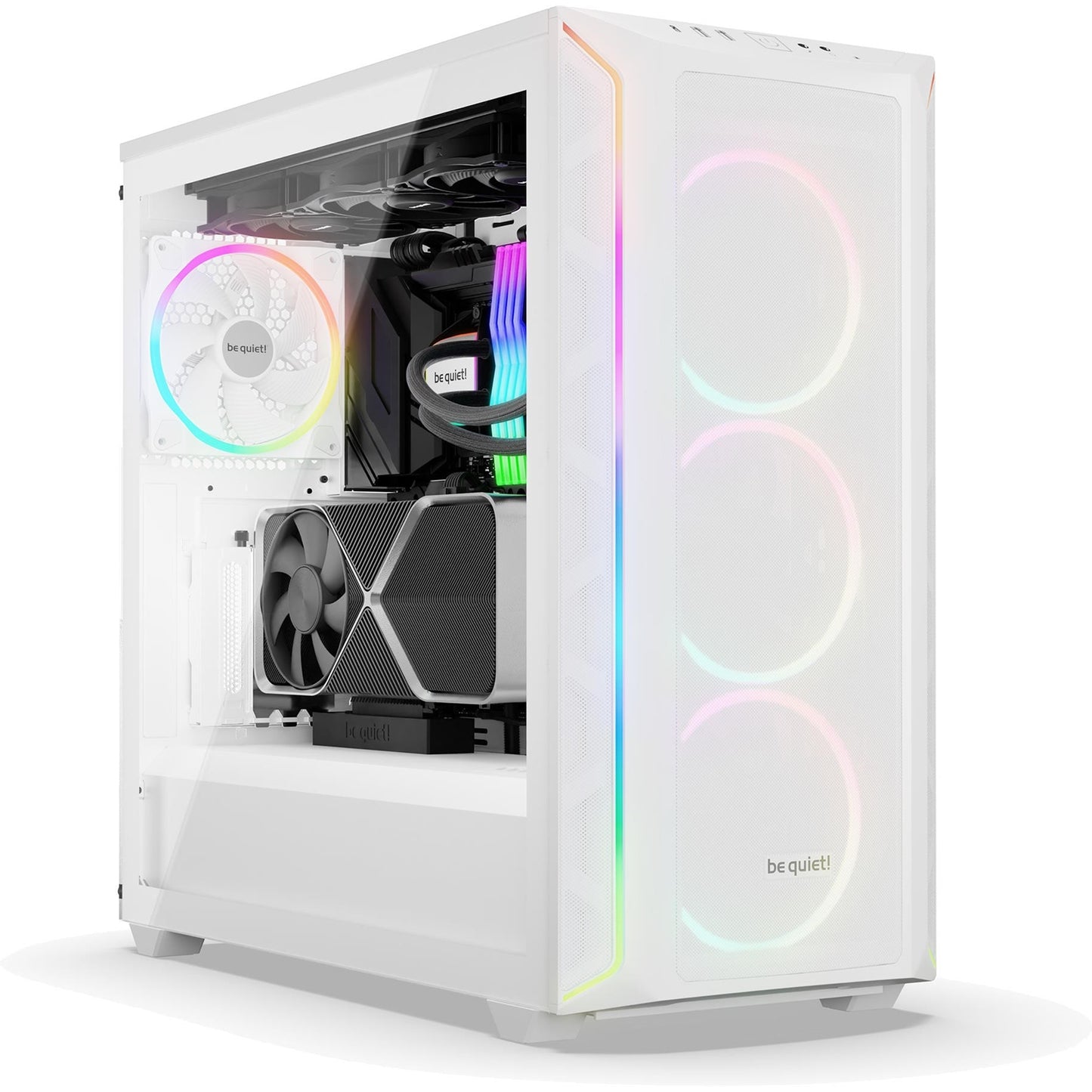

be quiet! Shadow Base 800 FX ARGB White Mid Tower Chassis, Addressable RGB LEDs, 4x 140mm Fans, mITX/mATX/ATX/EATX
be quiet! Shadow Base 800 FX ARGB White Mid Tower Chassis, Addressable RGB LEDs, 4x 140mm Fans, mITX/mATX/ATX/EATX
Regular price
£229.37 GBP
Regular price
Sale price
£229.37 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SHADOW BASE 800 FX WHITE
Impressive lighting, exceptional airflow
Shadow Base 800 FX White is an airflow-optimized midi-tower that offers impressive ARGB illumination and provides enough space for extensive components such as huge graphics cards and E-ATX motherboards.
ARGB lighting with ARGB controller for maximum illumination options
Multiple colors and modes for an individual look
4 Light Wings White 140mm PWM fans for high airflow and quiet operation
Exceptionally high airflow thanks to an open mesh design
Spacious design offers room for largest components
PWM and ARGB hub included
Simple and tool-less HDD and SSD installation
Tempered glass side window allows a superb view
IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings White PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front of the case offer multiple colors and modes to individualize the look. You can optionally synchronize lighting with your motherboard or an ARGB controller.
PERFECT AIRFLOW
Thanks to 4 PWM fans
With optimization for maximum airflow, the Light Wings White PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan provides the performance that is needed, even in demanding configurations. The fans are connected to a combined PWM and ARGB hub for up to 8 ARGB devices.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 FX White with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.
SIZE MATTERS
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Shadow Base 800 FX White sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.
NEAT INTERIOR
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 FX White, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.
MODERN I/O PORT
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors and an ARGB controller button complement the I/O panel and make it a multi-purpose interface for any type of hardware.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars.
General data
Model: Shadow Base 800 FX White
Color option: White
Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm):550 x 247 x 503
Case size incl. stands (L x W x H), (mm):550 x 247 x 522
Volume (l): 62.74
PSU form factor: ATX PS/2
Weight (kg): 12.3
Expansion slots: 7
Pre-installed fans
Fan at top: No
Fan at front:3 x Light Wings White 140mm PWM
Fan at side: No
Fan at rear: 1 x Light Wings White 140mm PWM
Fan at bottom: No
Dimensions (L x W x H), (mm): Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm): 1500
Airflow at 100% PWM / 12V (CFM / m3/h): 56 / 95.14
Air Pressure at 100% PWM / 12V (mm H2O): 1.49
Noise level at 100% PWM / 12V (dB(A)): 23.3
Voltage range (V DC): 5 - 13.2
Input power (W):3.84
Input current (A):0.32
Connector: 4-pin PWM
Lifespan (h / 25°C): 60,000
Fan controller: No
Maximum fan installation
Maximum fans: 8
Top (mm): 3 x 140 / 3 x 120
Front (mm): 3 x 140 / 3 x 120
Side (mm): No
Rear (mm): 1 x 140 / 1 x 120
Bottom (mm): 1 x 140 / 1 x 120
PSU shroud: No
Optional radiator installation
Top (mm): 120 / 140 / 240 / 280 / 360 / 420
Front (mm): 120 / 140 / 240 / 280 / 360 / 420
Side (mm): No
Rear (mm): 120
Bottom (mm): No
PSU compatibility
Maximum dimensions excl. bottom fan (mm): 305
Maximum dimensions incl. bottom fan (mm): 260
Graphics card
HDD cage (in height of graphics card) installed (mm): 430
HDD cage (in height of graphics card) removed (mm):430
Maximum PCIe slots with vertical graphics card (pcs.): 7
Drive bay capacity
5.25 bays (pcs.): No
3.5 slots (scope of delivery): 1
3.5 slots (max.): 3
2.5 slots (scope of delivery): 3
2.5 slots (max.): 7
Cooling
Max.construction height of CPU cooler unit (mm):180
Airflow channel: Front / Top / Rear / Bottom
Lighting
LED illumination: Yes
LEDs (pcs.): 40
LED type: ARGB - 5V
LEDs synchronizable with controller/motherboard: Yes
I/O Panel
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Type A: 2
USB 2.0: No
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option: No
Removeable dust filters
Top: No
Front: 1
Side: No
Bottom:1
