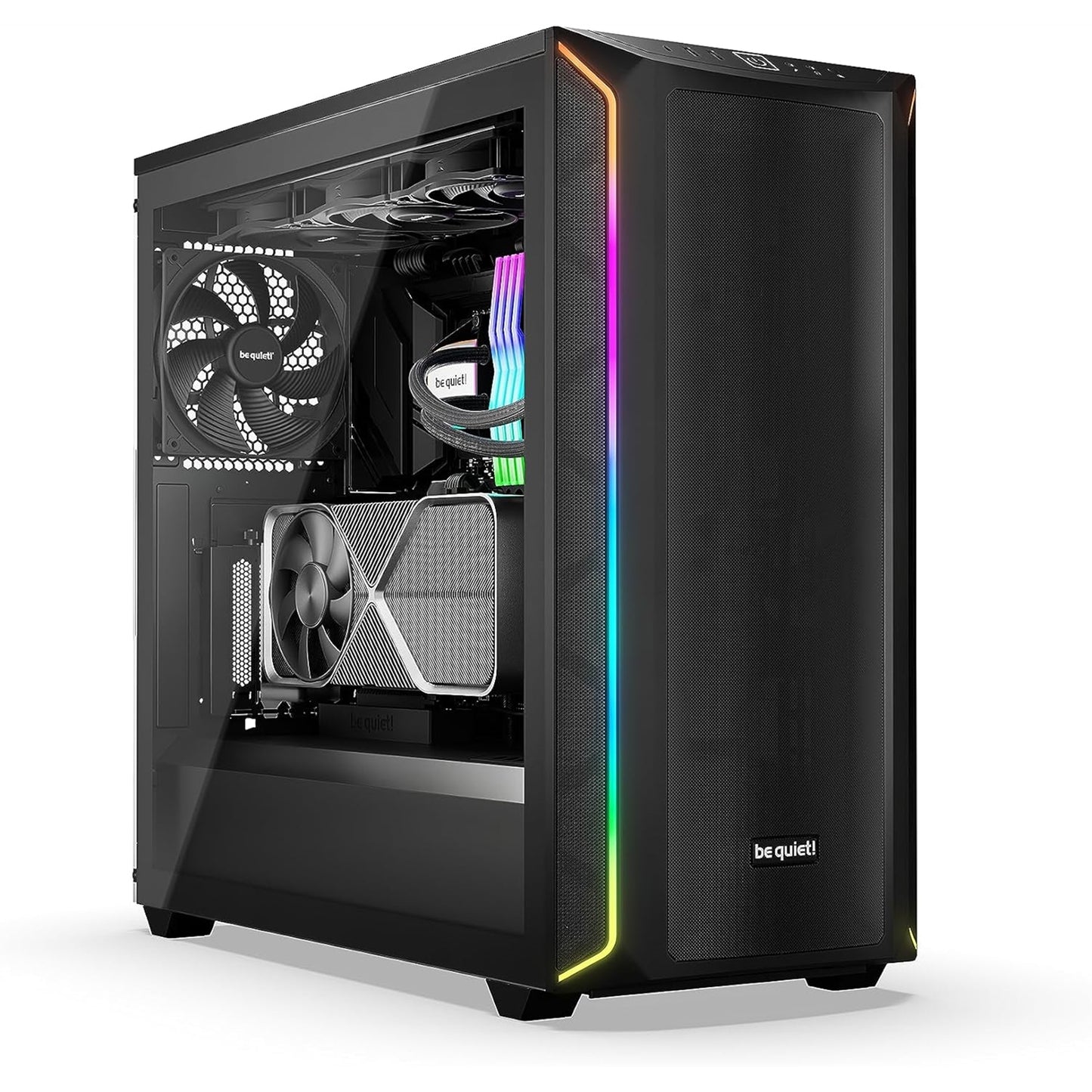

be quiet! Shadow Base 800 Case, DX,ARGB, Black, Mid Tower with Tempered Glass Window, 3x 140mm Fans, USB 3.2 Gen2,E-ATX/ATX/mATX/mITX

SHADOW BASE 800 DX Black
Exceptional airflow, maximum space
Shadow Base 800 DX Black is an airflow-optimized midi-tower with ARGB LEDs at the front that offers silent operation with enough space for extensive components such as graphics cards, 420mm radiators or E-ATX motherboards.

Exceptionally high airflow thanks to an open mesh design
3 Pure Wings 3 140mm PWM fans offer high airflow with quiet operation
Spacious design offers enough room for even the largest components
Subtle ARGB illumination with integrated ARGB controller
Simple and tool-less HDD and SSD installation
Easy to use cable bar for a tidy look
Tinted and tempered glass side window allows a superb view

HIGH AIRFLOW AND MAXIMUM PERFORMANCE
Airflow all the way
For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 DX Black with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.

PURE WINGS 3 FANS
Performant, yet quiet operation
With its 3 pre-installed Pure Wings 3 140mm PWM fans, Shadow Base 800 DX Black provides enough airflow to cool the most demanding components. Despite their performance, Pure Wings 3 offer quiet operation. Even at maximum speed, the fans operate at only 21.9dB(A).

SIZE MATTERS
Generous dimensions for radiators up to 420mm
With its remarkably large dimensions, Shadow Base 800 DX Black sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.

ELEGANT ARGB ILLUMINATION
LED strips at the front
ARGB LEDs at the front panel offer multiple colors and modes to individualize the look of the case. You can optionally synchronize lighting with your motherboard or an ARGB controller.

NEAT INTERIOR
Professional Cable Management
No matter the size or number of components built into the Shadow Base 800 DX Black, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.

MODERN I/O PORT
State-of-the-art connectivity for your system
A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors complement the I/O panel and make it a multi-purpose interface for any type of hardware.

TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.

General data
Model: Shadow Base 800 DX Black
Color option: Black
Motherboard compatibility: E-ATX / ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)550 x 247 x 503
Case size incl. stands (L x W x H), (mm)550 x 247 x 522
Volume (l): 62.74
PSU form factor: ATX PS/2
Weight (kg): 11.8
Expansion slots: 7

Pre-installed fans
Fan at top: 1 x Pure Wings 3 140mm PWM
Fan at front: 1 x Pure Wings 3 140mm PWM
Fan at side: No
Fan at rear: 1 x Pure Wings 3 140mm PWM
Fan at bottom: No
Dimensions (L x W x H), (mm)Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
Fan speed at 100% PWM / 12V (rpm): 1200
Airflow at 100% PWM / 12V (CFM / m3/h): 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O: 0.96
Noise level at 100% PWM / 12V (dB(A)): 21.9
Voltage range (V DC): 5 - 13.2
Input power (W): 3.6
Input current (A): 0.3
Connector: 4-pin PWM
Lifespan (h / 25°C): 80,000
Fan controller: No

Maximum fan installation
Maximum fans: 8
Top (mm): 3 x 140 / 3 x 120
Front (mm): 3 x 140 / 3 x 120
Side (mm): No
Rear (mm): 1 x 140 / 1 x 120
Bottom (mm): 1 x 140 / 1 x 120
PSU shroud: No

Optional radiator installation
Top (mm): 120 / 140 / 240 / 280 / 360 / 420
Front (mm): 120 / 140 / 240 / 280 / 360 / 420
Side (mm): No
Rear (mm): 120
Bottom (mm): No

PSU compatibility
Maximum dimensions excl. bottom fan (mm): 305
Maximum dimensions incl. bottom fan (mm): 260

Graphics card
HDD cage (in height of graphics card) installed (mm):430
HDD cage (in height of graphics card) removed (mm):430
Maximum PCIe slots with vertical graphics card (pcs.): 7

Drive bay capacity
5.25 bays (pcs.): No
3.5 slots (scope of delivery): 2
3.5 slots (max.): 4
2.5 slots (scope of delivery): 4
2.5 slots (max.): 8

Cooling
Max.construction height of CPU cooler unit (mm): 180
Airflow channel: Front / Top / Rear / Bottom

Lighting
LED illumination: Yes
LEDs (pcs.): 40
LED type: ARGB - 5V
LEDs synchronizable with controller/motherboard: Yes

I/O Panel
USB 3.2 Gen. 2 Type C: 1
USB 3.2 Type A: 2
USB 2.0: No
HD Audio I/O: Mic + Audio
Qi charger / Quick Charging Option: No

Insulation and damping
Top panel insulation mats: No
Front panel insulation mats: No
Side panel insulation mats: Yes
Anti-vibration decoupled HDD: Yes
Anti-vibration decoupled fan: Yes
Anti-vibration decoupled PSU: Yes
Anti-vibration decoupled motherboard-tray: No

Removeable dust filters
Top: No
Front: 1
Side: No
Bottom:1
